Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                            Parallel twin screw barrel for extruders, 134mm diameter extruder screw barrel, Extruder screw barrel with warranty


Materiaal:	PPS, 38Crmoal 45#	Gewicht:	32 kg
Maat:	410370300 mm	Gatdiameter:	134 mm
Centrale afstand:	110 mm	Model 20 dimensies:	132115105 mm
Model 20 diameter:	Φ 23 mm	Model 20 Middenafstand:	18.4 mm
Model 30 dimensies:	120135115 mm	Model 30 diameter:	Φ 30,6 mm
Model 30 Middenafstand:	26 mm	Model 35 dimensies:	140140120 mm
Model 35 diameter:	Φ 36 mm	Model 35 Middenafstand:	30 mm
Model 36 dimensies:	150160140 mm

Materiaal:	PPS, 38Crmoal 45#
Gewicht:	32 kg
Maat:	410370300 mm
Gatdiameter:	134 mm
Centrale afstand:	110 mm
Model 20 dimensies:	132115105 mm
Model 20 diameter:	Φ 23 mm
Model 20 Middenafstand:	18.4 mm
Model 30 dimensies:	120135115 mm
Model 30 diameter:	Φ 30,6 mm
Model 30 Middenafstand:	26 mm
Model 35 dimensies:	140140120 mm
Model 35 diameter:	Φ 36 mm
Model 35 Middenafstand:	30 mm
Model 36 dimensies:	150160140 mm

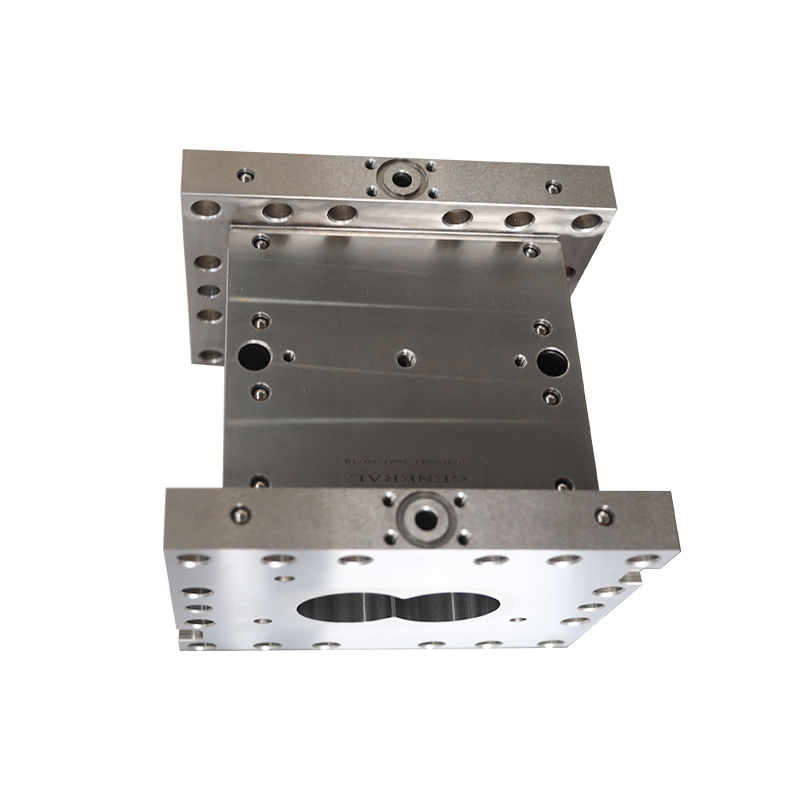

Parallel Twin Screw Barrel 134mm Diameter for Extruders

Twin Screw Barrel with Chrome Plating for Corrosive Materials

Standard Barrel

Batch production with sufficient inventory available for immediate delivery.

Non-Standard Barrel

Our professional technical team provides custom solutions including surveying, sampling, 3D rendering, and specialized manufacturing to meet your exact requirements.

Technical Specifications

No.	Model	LWH (mm)	Diameter Φ (mm)	Center Distance D (mm)
1	20	132115105	Φ 23	18.4
2	30	120135115	Φ 30.6	26
3	35	140140120	Φ 36	30
4	36	150160140	Φ 36	30
5	40	160175145	Φ 41.6	34.5
6	50	190190150	Φ 51	42
7	52	210200155	Φ 52	43
8	53	220210160	Φ 53.3	48
9	58	240220175	Φ 58	48
10	60	240210170	Φ 60	52
11	65	240210170	Φ 63	52
12	75	290260200	Φ 71.8	60
13	85	320280215	Φ 81.9	67.8
14	92	360310240	Φ 92	78
15	95	360310240	Φ 94	78
16	110	420330240	Φ 109	91.5
17	125	500390290	Φ 125	98
18	135	520440340	Φ 134	110
